HJD Horizontal Mountain Spring Well Water Drilling Rig 1 в Балхаше

1、Introduction of HJD Horizontal Mountain Spring Water Well Drilling Rig

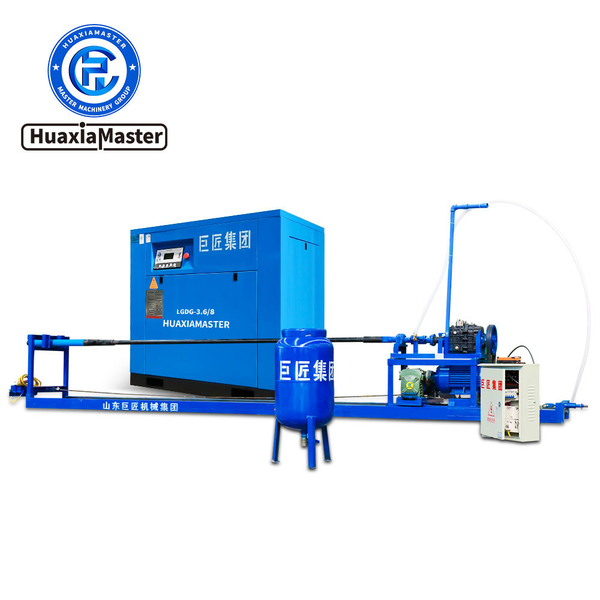

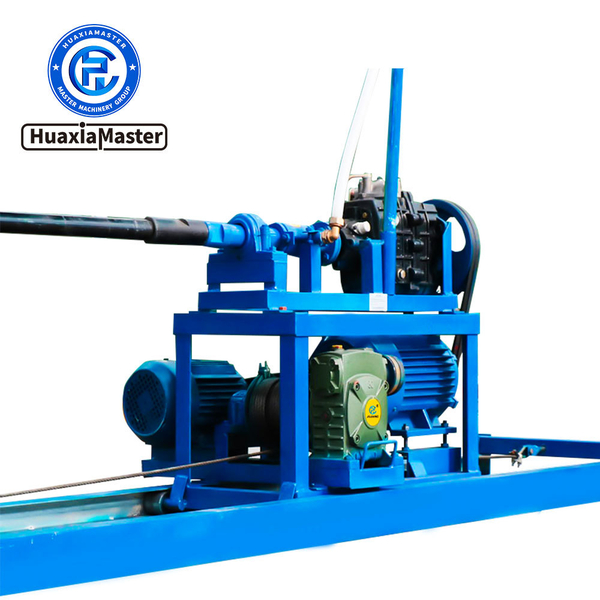

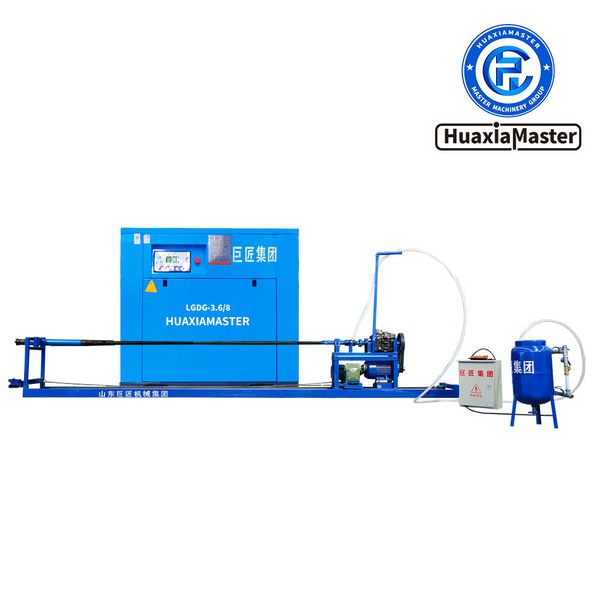

HJD horizontal spring water well drilling rig adopts modular design, which is composed of main machine, slide way, distribution board, water gas bottle, etc., with reasonable layout and compact structure. In order to further facilitate mobile handling, the main machine can continue to be disassembled into rotary part, propulsion part and main machine base, and the slide way can continue to be disassembled into guide rail, wire rope tensioner and drilling tool support frame. The main machine of the drilling rig adopts the principle of water and gas combination of pneumatic drilling and wet slag removal, which can be used in conjunction with the long-stroke slide to realize the horizontal drilling of mountains. The drilling rig has been widely used in horizontal drilling and mountain horizontal drilling.‌
2、Features of HJD Horizontal Mountain Spring Water Well Drilling Rig
2.1 The drilling rig adopts the working principle of water and air combination, with high efficiency, fast footage and less dust.
2.2 Long stroke slide way shall be configured and long drill pipe shall be selected to reduce the number of drill pipe switching.
2.3 The drilling rig adopts modular design, which can be easily disassembled and assembled, and is convenient for transportation and handling.
2.4 In addition to forward rotation, the main machine is equipped with inching forward rotation and inching reverse rotation for easy loading and unloading of drill pipe.
2.5 The power distribution panel of the drilling rig is equipped with a wireless remote controller, which can realize remote operation of the host.
3、Parameters of HJD Horizontal Mountain Spring Water Well Drilling Rig
Model HJD
Drilling diameter 65、70、76、80mm
Drill pipe specifications φ42*4000
Voltage 380V
Power Rotary motor 4kW
Propulsion motor 2.2kW
Weight Turning part 90kg
Promotion Department 69kg
Host base 80kg
Guide 38kg/Strip
Drill tool support 1
